COTT-SS301-S16REH

აღწერა

Short and Vigorous

500mm depth, optional tool-less rail,apply to various cabinet.

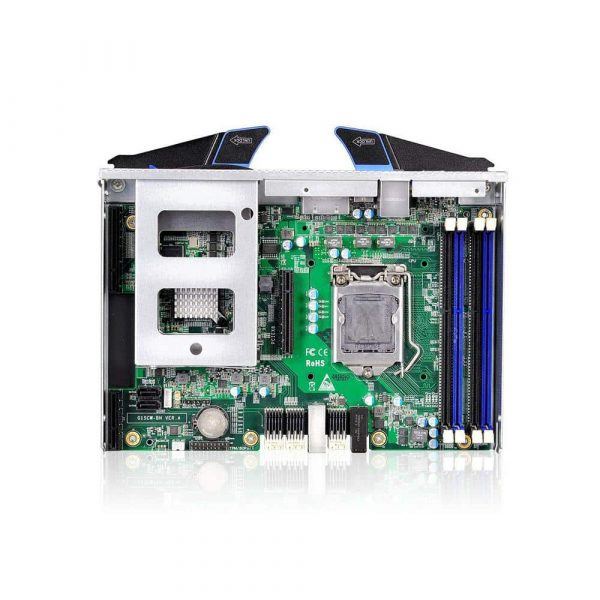

Controller Architecture

A hot-swap single modularized controller that contained both Serverboard and OS Hdds is used in COTT® storage server,it can be connected through high speed signal transmission connector and backplane, Modularized design for easy mainternance.

Powerful Extendibility

1U controller modular supports 1×2.5”OS HDD or 1xhalf-height PCIe extension card.

2U controller modular supports 2×2.5”OS HDD or 1xhalf-height PCIe extension card.

Expansion slot can support 10Gb networking cards or low-power GPU and various kinds of extension equipments.

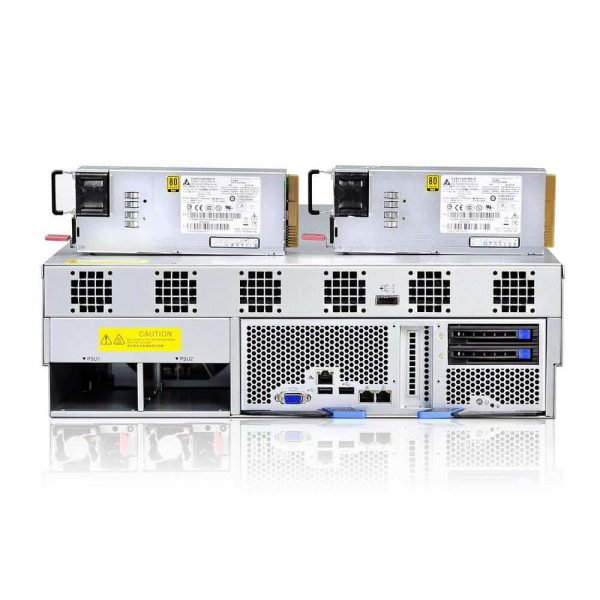

Modularity,Cable-less Design

Cable-less design is realized to enhance the ability of system thermal Dissipation,it not only extands working life of fans but also reduces the operating noise to 50db below.

The fans,power-supply, HDDs and backplane are all designed with modularity, The PCB insteads of cable greatly improve the reliability and thermal performance of the system.

JBOD Connection

Four-layer cascaded JBOD achieves mass extension storage through our particular Re-driver technology.System can monitor and manage all JBOD status directly.

High Compatibility

Supports intel® Xeon® processor E3-1200 V3/V4 processor,

apply to i3, i5, i7, Pentium,Celeron with LGA1150 socket;

Supports SAS/SATA 3.5”/2.5”HDD.

Lower Power Design

The particular MAID technology is optional,it can reduce system power consumption greatly,Green technology, environmental protection and energy saving;

The whole system HDDs support to be sequential powered, reducing power consumption of booting.
