COTT-MNS103-S06R

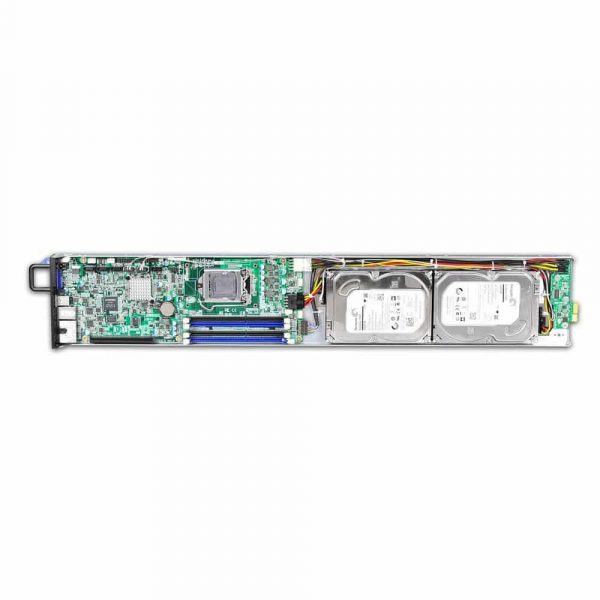

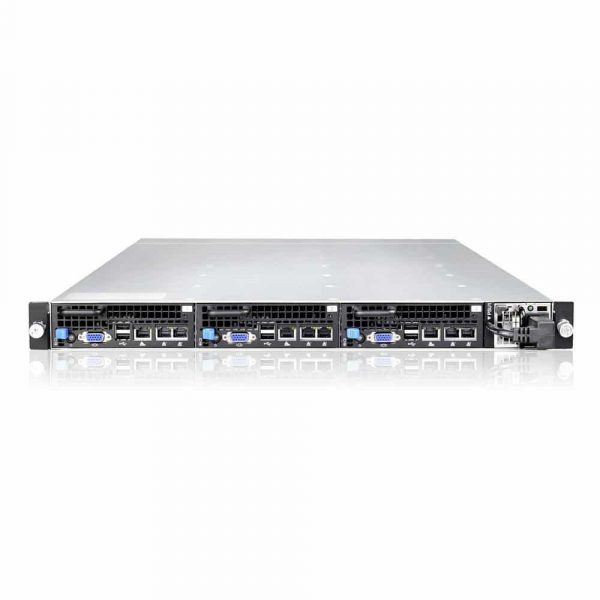

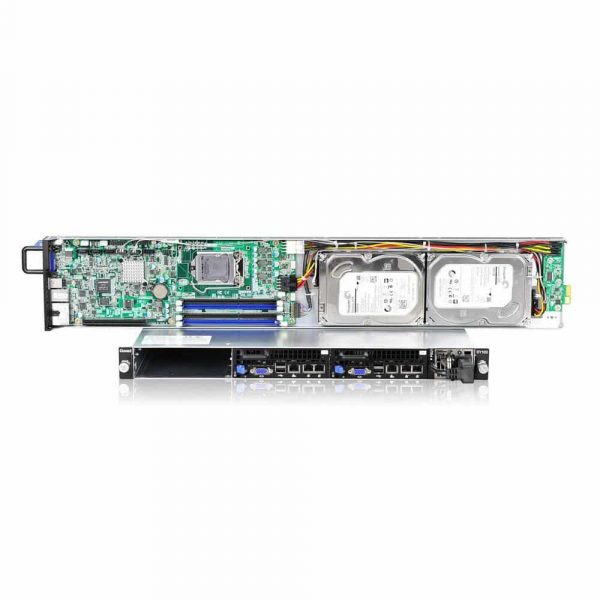

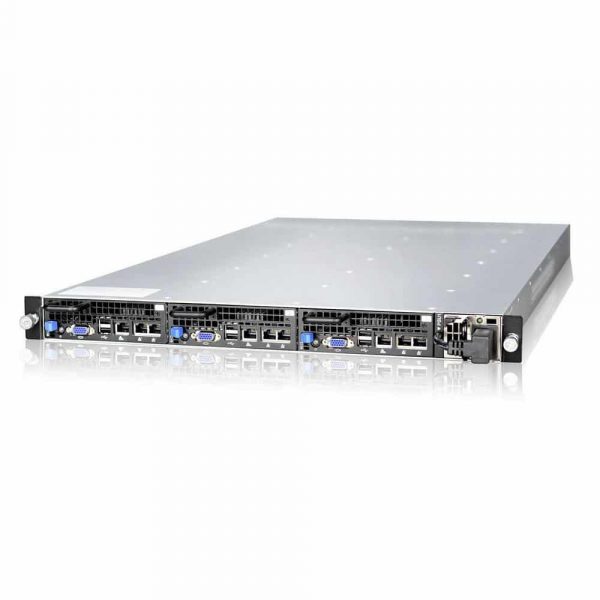

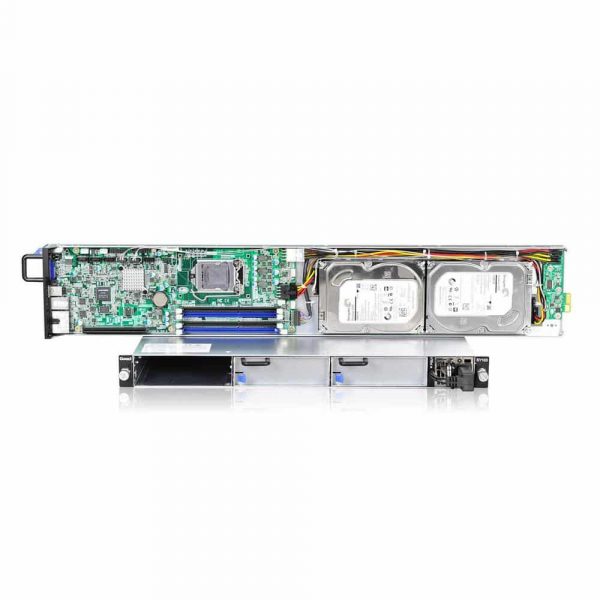

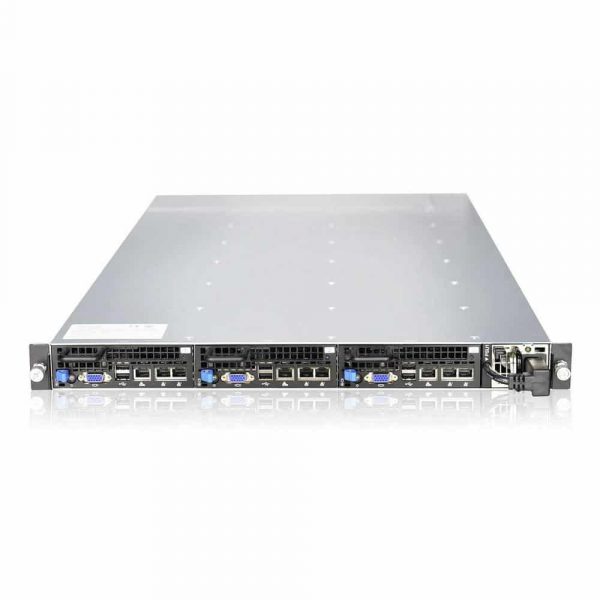

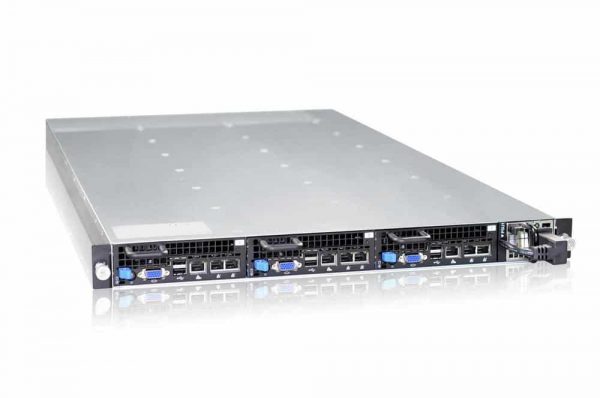

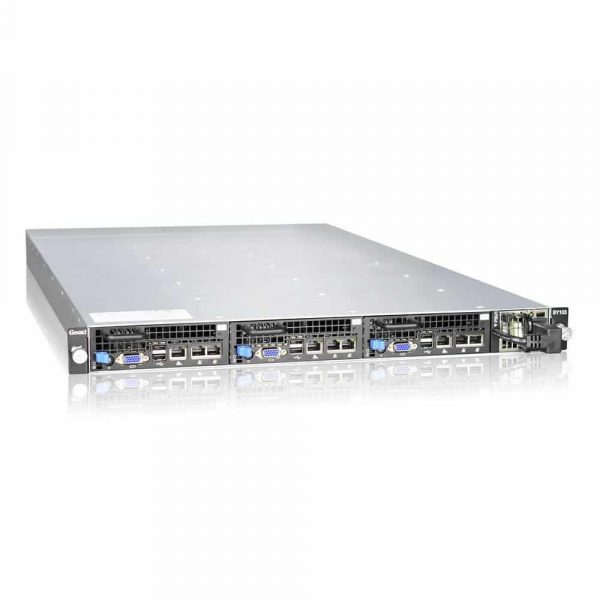

COTT® MNS103-S06R is an entry-level 1U high density server product (Micro-Cloud Server).This design can support 3pcs hot swap nodes within 1U height, each server node can be used independently, users can configure the node quantity according to actual requirement.
- აღწერა
- სპეციფიკაციები
აღწერა
აღწერა
Make on demand , free collocation

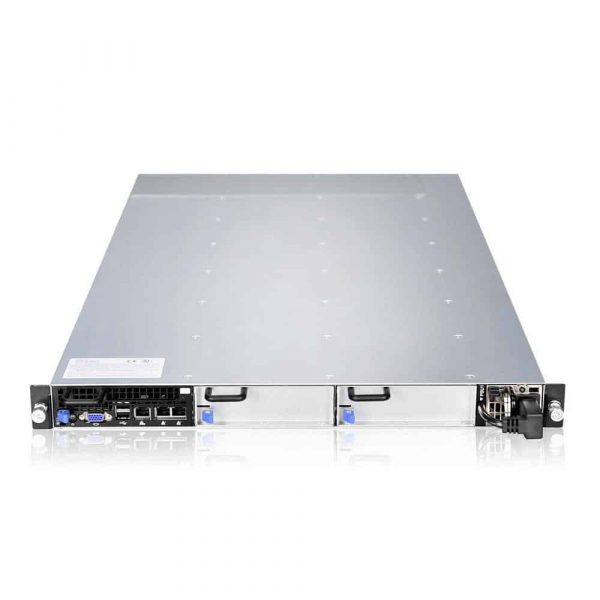

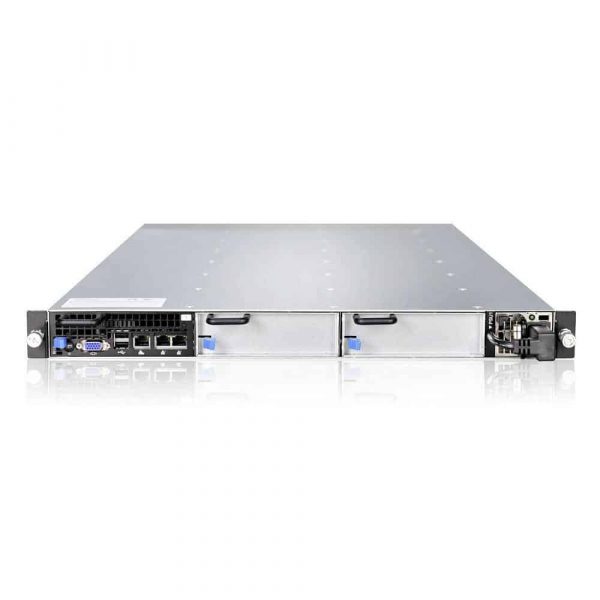

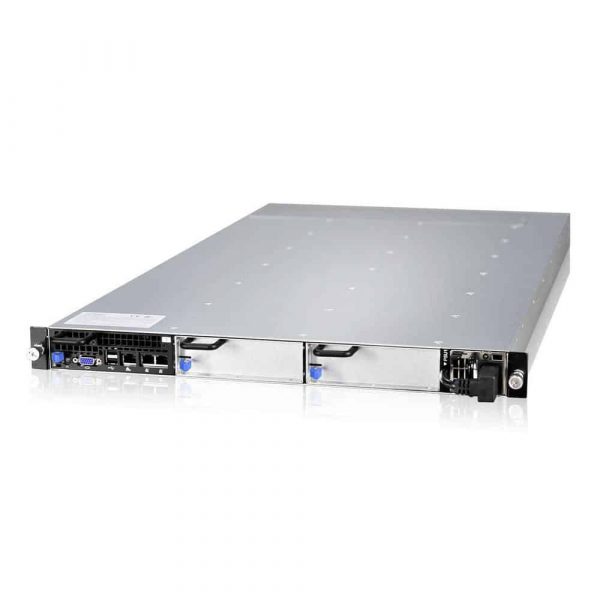

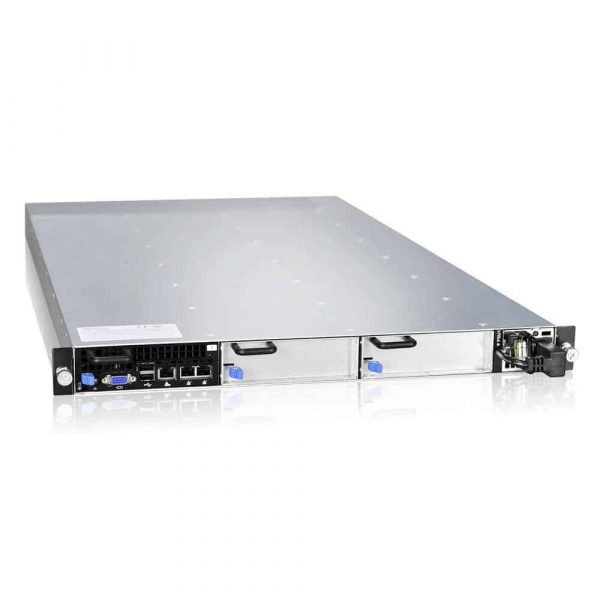

Support 3 nodes Standardly, 1-3node as option.

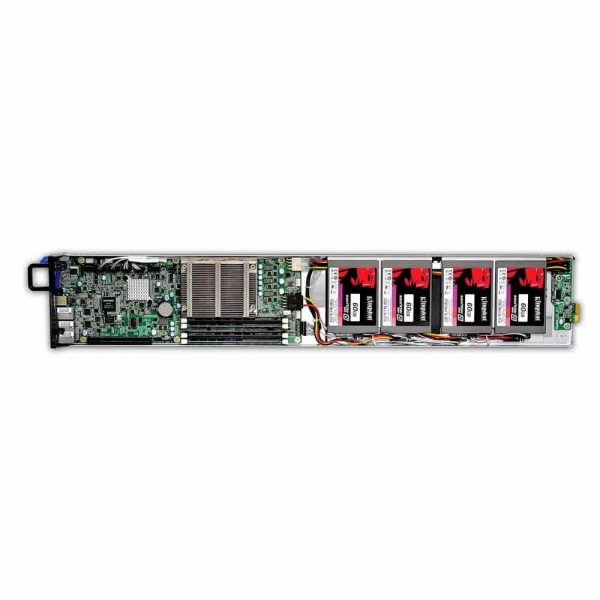

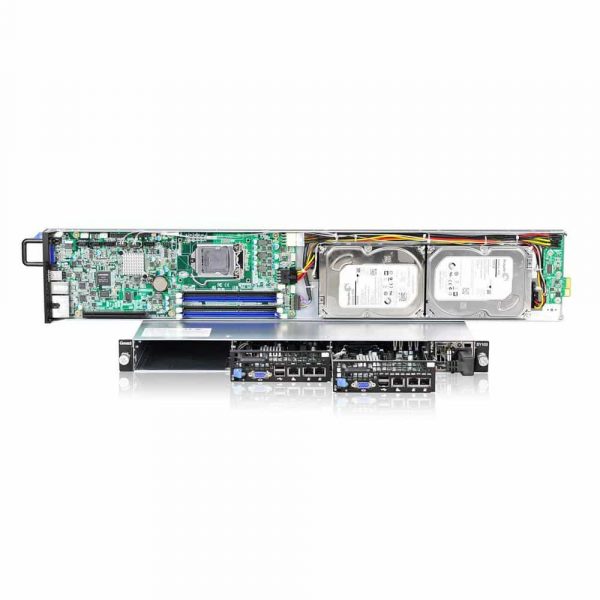

Each node supports 2pcs 3.5inch HDD , 4pcs 2.5inch HDD as option.
Support 6pcs 3.5inch HDD or 12pcs 2.5inch when full configured.
Custom-made with high cost performance
High availability, high compatibility
Based on Intel® Denlow platform, using Intel PCH C222 /C226 is optional.
Support Intel® Xeon® Processor E3-1200 V3/V4 series processor (max 84W).
Each node supports 2pcs 1000M Ethernet port (Intel i210).
Concentrated power supply, strong stability

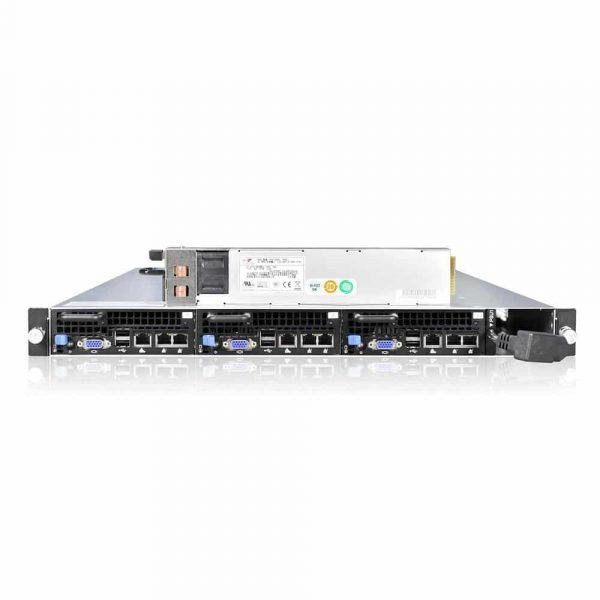

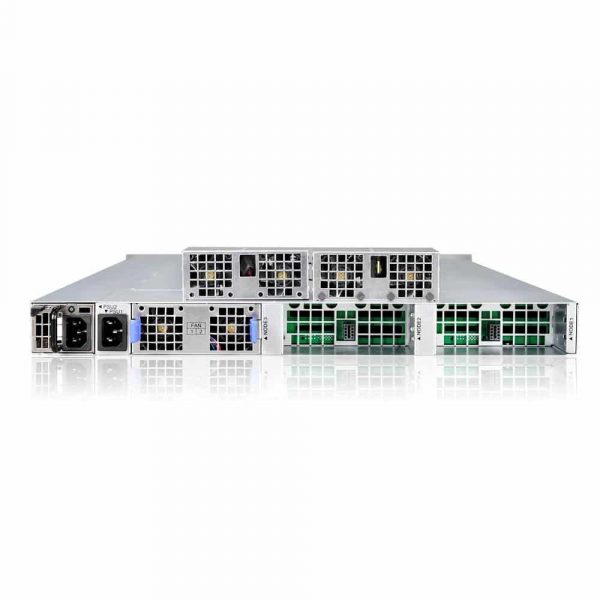

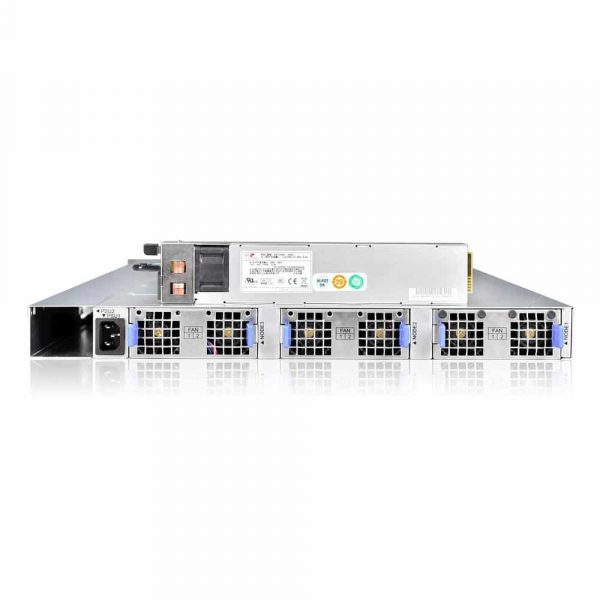

Applied ZIPPY 500W gold efficiency power supply, support 1+1 redundancy hot swap replacement.
Concentrated and redundant power supply ensure stability of system.
Concentrated heat dissipation, intelligent temperature control

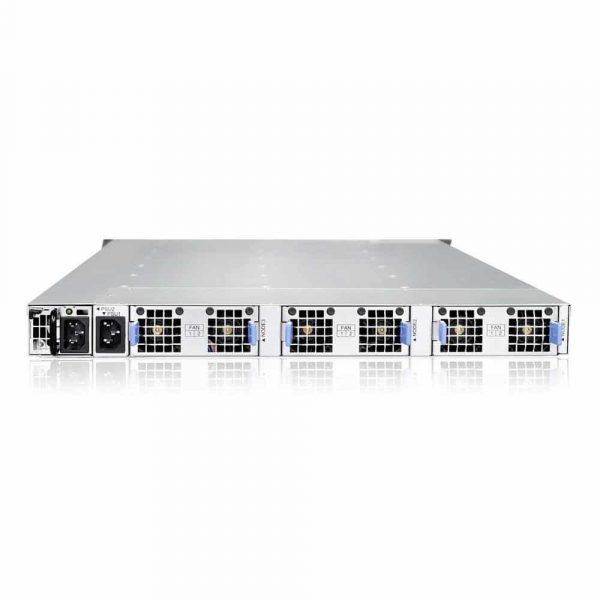

Applied 6pcs 4056 fans constituted three groups of intelligent temperature control fan module, which support hot plug replacement with excellent shock-proof design.
Remote management
Based on IPMI2.0 technology with dedicated 1000Mbps Ethernet management port.
It has a VGA interface from BMC that applied Aspeed AST2400.
System can implement running status monitoring and fault early warning, support remote console, remote media redirection.
High expansibility
There are four DIMM Dual Channel in every node, support 32 GB ECC VLP UDIMM maximumly.
Single node supports 1pcs PCI-E 3.0 X8 half height expansion card (need to match with Gooxi self-developed Riser card).
სპეციფიკაციები
დამატებითი ინფორმაცია
| System | ||
|---|---|---|
| System Node | Support 3pcs hot swap nodes, users can configure 1、2、3 node as option |
|
| CPU | Each node supports 1pcs CPU |
|
| HDDs | Support 6pcs 3.5inch HDDs or 12pcs 2.5inch HDDs maximumly |
|
| Memory | Support 96GB VLP ECC DDR3-1600/1333/1066 UDIMM maximumly |
|
| Product Dimension | 800mm*448mm*43.5mm (D*W*H) |
|
| Motherboard | ||
| CPU Support | Intel® Xeon® processor E3-1200 V3/V4 series Intel® 4th Generation Core i3 series Pentium series； Celeron series Socket H3 (LGA1150) up to 84W CPU |
|
| MB Chipset | Intel® PCH Lynx point C222/226 |
|
| DIMM | Support 4pcs 240 pin DDR3 DIMMs lot |
|
| Memory Type | Support 32GB VLP ECC DDR3-1600/1333/1066 UDIMM maximumly, Support volume of 2GB, 4GB, 8GB,16GB |
|
| SATA Port | Support 2pcs SATA3.0 6Gb/s ports and 4pcs SATA2.0 3Gb/s ports |
|
| RAID Support | Intel® RSTe Support software RAID 0, 1, 10 & 5 （ for windows only) |
|
| Graghics Card | Aspeed AST2400 64MB |
|
| IPMI | Support for Intelligent Platform Management Interface v.2.0IPMI 2.0 with virtual media over LAN and KVM over LAN support ASPEED AST2400 BMC |
|
| Network Card | 2pcs Intel® i210-AT GbE LAN controller |
|
| USB | 2pcs USB2.0 interface,internal 2pcs USB2.0 connector |
|
| DOM | Support SATA DOM power connector |
|
| System Power Unit | ||
| Power Quantity | Support 2pcs |
|
| Power feature | ZIPPY 500W gold efficiency, 1+1 redundant power |
|
| Power Voltage | Input voltage：100-240V 47Hz~63Hz ；output voltage：+12V,+5V_SB |
|
| System Fan | ||
| FAN Quantity | support 6pcs 4056temperature control fan |
|
| FAN Speed | 13600 RPM maximumly |
|
| Operating System | ||
| Server | Windows Server 2008 R2(64bit) Windows SBS 2011 (64bit) Windows Server 2012/2012 R2 (64bit) Redhat Enterprise Linux Server (32bit/64bit) Suse Enterprise Linux Server (32bit/64bit) Ubuntu Server (32bit/64bit) |
|
| Virtualization | VMWare ESXi(Target) Microsoft Hyper-V (Target) Citrix Xen Server(Target) Linux Kernel Virtual Machine (Target) |
|
| Temperature and Humidity range | ||
| System Temperature | Working temperature： 10℃ ~ 35℃； |
|
| System Humidity | Working humidity：35%~80% ； Storage humidity：20% ~ 90% |
|
