Micro Blade Server Barebone

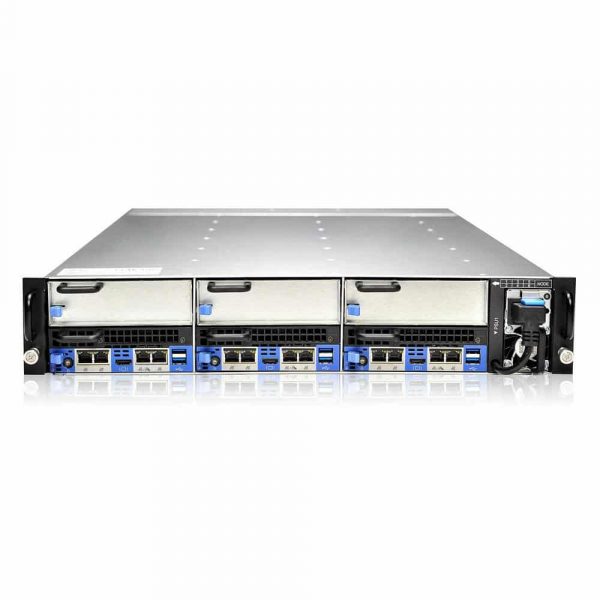

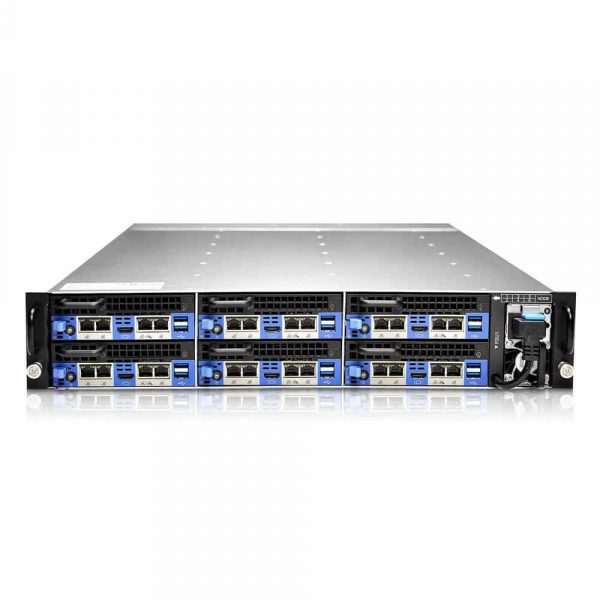

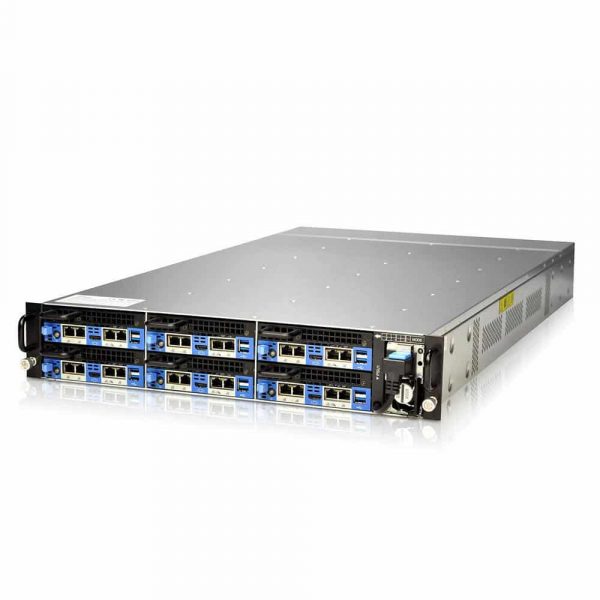

The COTT® MNS206-S12R-G2 is a 2U Micro-Cloud Server that allows the system to support up to 6 hot-pluggable server nodes in a 2U chassis height, with each server node individually to operate according to the needs to flexible configure the number of server nodes.
Feature Highlights：
Versatile and Flexible Configurations
Each node support 4x DIMM slot, capacity up to 64GB ECC DDR4. Each node support up to 2×3.5″ or 4×2.5″ internal drives. Overall 12×3.5″ or 24×2.5″ internal drives support in a full configured system. Support one HHHL PCLe 3.0×8 card via dedicated COTT® riser card. Each node support 1x dual 10GbE RJ45（INTEL 82599）mezzanine module option.
High Availability and Capability
The system design based on Intel® E3 V5/V6 Greenlow platform and the Intel® PCH C232/C236 chipset.
The system support Intel® Xeon® Processor E3-1200 V5/V6 （LGA1151） platform，maximum TDP is up to 80W.
Centralized Power Supply, Strong Stability

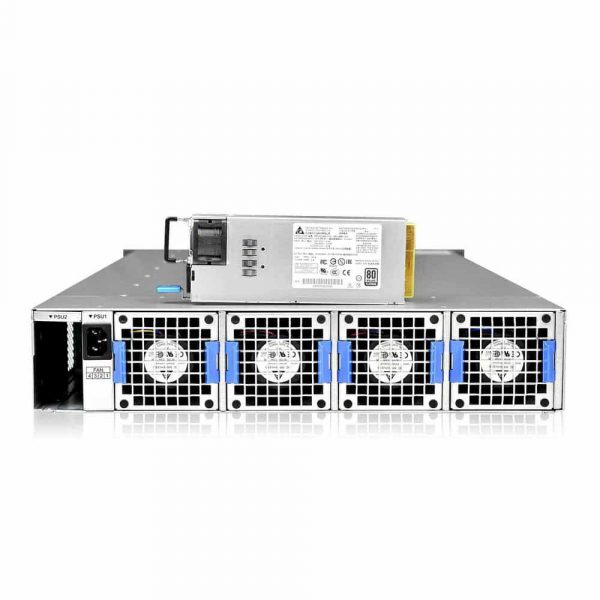

The system equipped with 1+1 hot-swappable 800W 80+Gold redundant PSU.
The use of centralized power supply and 1+1 redundant power supply, to ensure system stability.

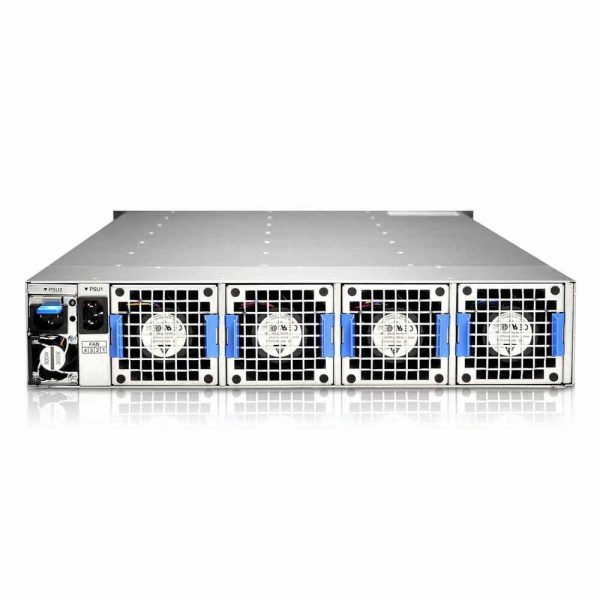

Rear Smart Fan Control
4×8038 high performance & hot-swappable fan module with smart fan control and management on the chassis rear.
Anti-vibration mechanism design on fan module.
Support Remote Management
System Remote Management through IPMI2.0 Remote Management Technology and shared Gigabit Management Network Port.
Local HDMI-to-VGA port build-in benefits the serviceability.
სპეციფიკაციები
დამატებითი ინფორმაცია
| System | ||
|---|---|---|
| System Node | System support up to 6x hot-swappable server nodes,order configurable by 2, 4 or 6 nodes |
|
| CPU | Single CPU support on each node |
|
| System Hard Drives | Up to 12x 3.5” or 24x 2.5”hard drives support based on full configuration |
|
| System Memory | System support up to 384GB DDR4-1600/1866/2133 ECC UDIMM |
|
| System Dimension | 800mm*448*88mm (D*W*H) |
|
| System Mainboard | ||
| CPU Type | Intel® Xeon® Pocessor E3-1200 v5/v6 series Intel® 6th/7th Generation Core i3/i5/i7 series Pentium series；Celeron series Socket H4 (LGA1151) up to 80W CPU |
|
| Chipset | Intel® PCH C232/C236 |
|
| DIMM Quantity | 4x DDR4 DIMM slots |
|
| DIMM Type and capacity | Capacity:Up to 64GB DDR4-1600/1866/2133 ECC UDIMM; Type:2GB, 4GB, 8GB or 16GB capacity |
|
| SATA Port | Support 2x SATA3.0 6Gb/s or 4x SATA3.0 6Gb/s ports |
|
| RAID Mode Support | Software RAID 0,1,5,10 by Intel® RSTe |
|
| BMC | Aspeed AST2400 64MB |
|
| IPMI | Support IPMI V2.0 |
|
| PCI-e | Support 1x PCIe 3.0 Slots half height |
|
| NIC | 2x INTEL i210 1GbE on board, and optional 4x 1GbE or 2x 10GbE NIC module |
|
| USB / VGA | 2x USB 3.0 / 1x VGA port via HDIM connector |
|
| SATA DOM | Support 1x SATA DOM power connector |
|
| M.2 | Support 1x M.2 SSD (2242/2280/22110) |
|
| Power Supply With PDB | ||
| PSU Module | 2x 1+1 CRPS redundant PSU |
|
| PSU Efficiency | 800W module 80+Gold |
|
| PSU Input/Outpu | AC Input：100-240V 47Hz~63Hz DC Output：+12V,+5V_SB |
|
| System Cooling | ||
| FAN Quantity | Up to 4x 8038, support PWM smart fan control |
|
| FAN Speed | Maximum 9000RPM |
|
| Operation System Compatibiliy | ||
| Operating System Support | Windows Server 2008 R2(64bit) Windows SBS 2011 (64bit) Windows Server 2012/2012 R2 (64bit) Redhat Enterprise Linux Server (32bit/64bit) Suse Enterprise Linux Server (32bit/64bit) Ubuntu Server (32bit/64bit) |
|
| Virtualization System Support | VMWare ESXi(Target) Microsoft Hyper-V (Target) Citrix Xen Server(Target) Linux Kernel Virtual Machine (Target) |
|
| Operating Environment | ||
| Temperature | OP：10℃ ~ 35℃； NON-OP：-40℃ ~ 70℃ |
|
| Humidity | OP：35%~80% ； NON-OP：20% ~ 90% |
|
